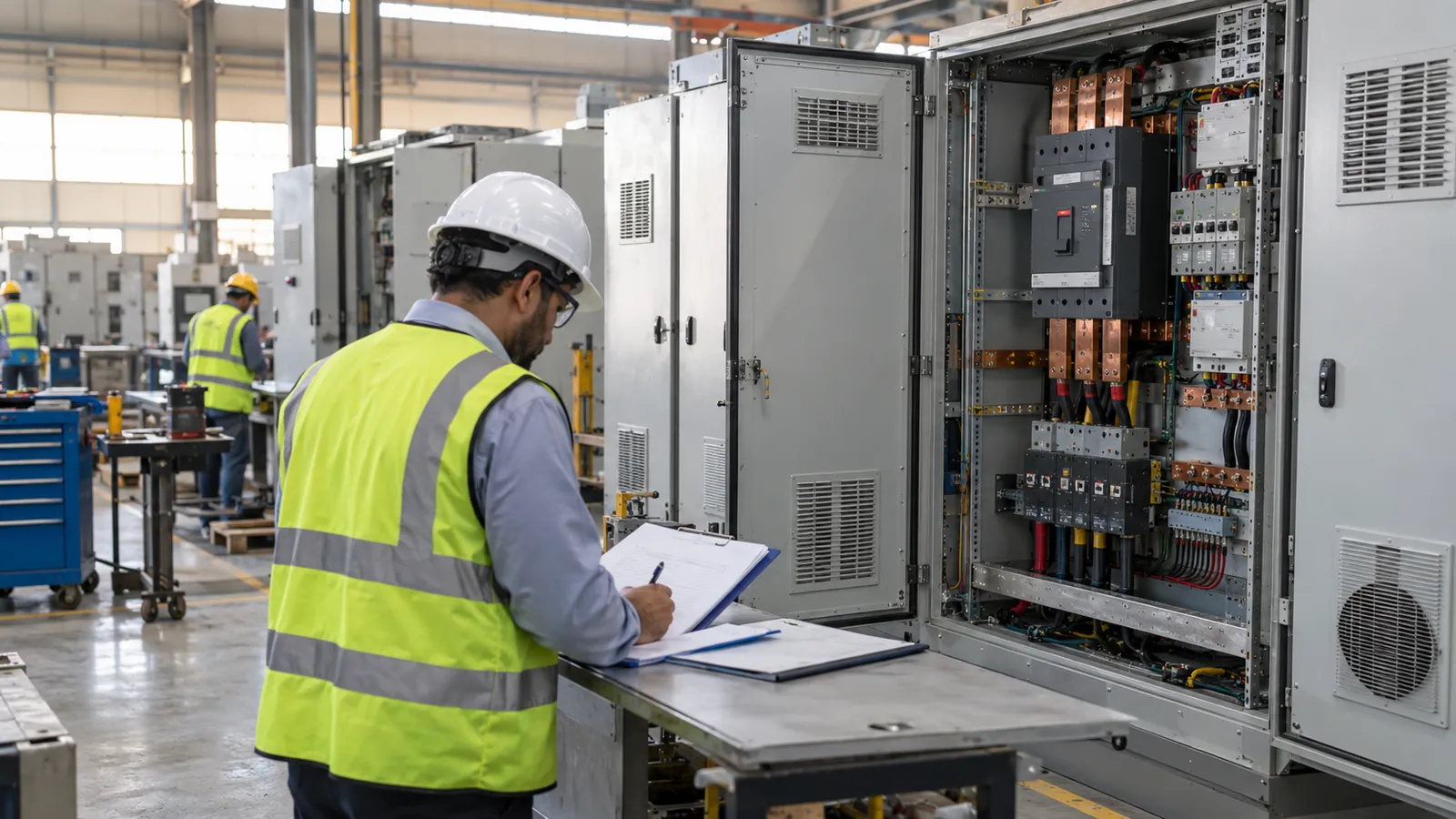

Control Panel FAT Checklist: What a Factory Test Covers
A control panel FAT checklist lists the checks a panel must pass at the factory before shipment: document review, visual inspection, wiring and torque checks, insulation resistance, dielectric test, functional operation and a signed report. Use it to prepare your witness visit or to review a report you have received.
