HVAC Control Panel Manufacturer in Saudi Arabia

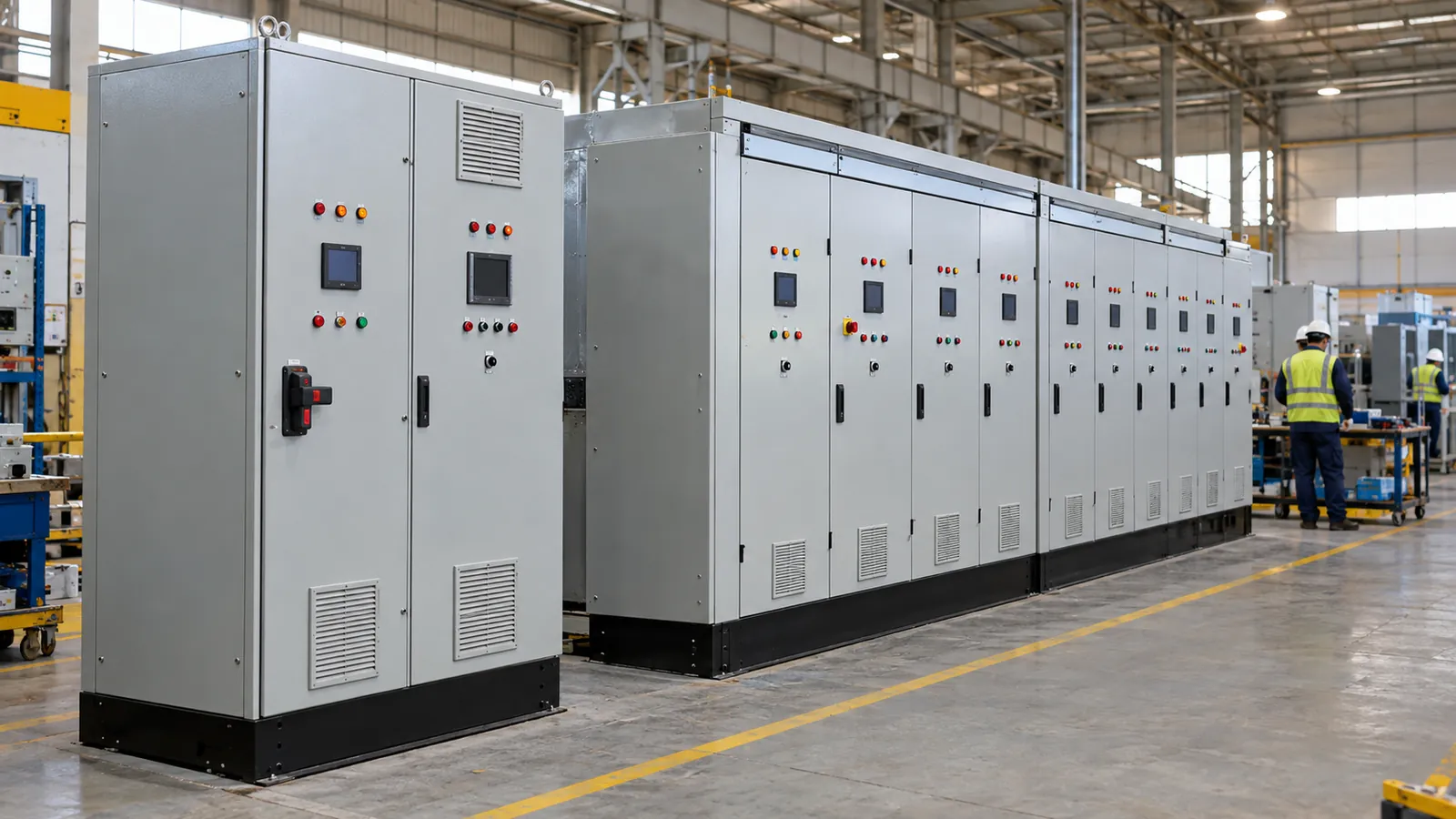

Saudi Control Panels Company is an HVAC control panel manufacturer in Saudi Arabia, building chiller starter panels, AHU panels, chilled-water pump panels and cooling tower fan panels for district cooling plants, commercial buildings and HVAC equipment makers. Panels typically leave our Dammam workshop 2 to 6 weeks after drawing approval.
What you receive: a written proposal listing each panel with its rating, standard, delivery time and price, issued within one working day of your equipment list or OEM drawings. Request a quotation
What panels does a cooling plant or HVAC system use?
Cooling is the largest electrical load in most Saudi buildings and plants, and it runs at full output through the summer. The panels behind it fall into a short list:
- chiller starter panels, using star-delta, soft-starter or VFD starting;
- chilled-water and condenser-water pump panels, normally duty and standby;
- cooling tower fan panels with variable speed control;
- AHU and fan coil panels, from a single fan to a bank of units; and
- the plant-room MCC and LV switchboard that feed them.
A district cooling plant puts many of these in one building, so panels must fit tight plant rooms, with clear front access and short cable runs.
HVAC control panel manufacturer: what we build
| Panel | Range / specification | Standard | Typical lead time |
|---|---|---|---|
| Chiller starter and VFD panels | To specification, soft-starter or VFD, with ventilation sized to the heat load | IEC 61439-1/-2 | 2–4 weeks |
| AHU and fan panels | Custom control panels to specification, single unit or batch | IEC 60204-1; IEC 61439-1/-2 | 2–4 weeks |
| Pump and tower fan panels | Duty and standby, DOL, star-delta, soft-starter or VFD | IEC 61439-1/-2 | 2–4 weeks |
| Plant-room MCC panels | Fixed or withdrawable, up to 4,000 A busbar | IEC 61439-1/-2 | 4–6 weeks |
| Plant-room switchboards | Up to 6,300 A, 380–415 V 60 Hz, Form 1–4b, short-circuit rating up to 100 kA (per design verification) | IEC 61439-1/-2 | 3–5 weeks |
| OEM batch assembly | From your drawings and BOM | IEC 60204-1 | 2–6 weeks |
We build with ABB, Schneider Electric and Siemens components in Rittal enclosures, and we fit your chiller or AHU maker's controller where the equipment supplier specifies one. Terminal blocks for the signals that go to the building controls contractor are laid out and labelled to your drawing.
How do you keep VFD panels cool in a hot plant room?
Size the cooling to the heat the drives release, and not to the panel size. Every VFD gives off heat as a share of its rating. In a plant room at high ambient temperature, that heat must be carried out of the enclosure by filtered fans, a heat exchanger or an air-conditioning unit, depending on dust and the room. We calculate the heat load at the design stage, select the cooling to match and record the result on the data sheet. Read more on VFD panels.
Drives also put harmonic currents on the board. We provide line reactors or filters where your design or the drive maker calls for them.
How do you build panels for an HVAC equipment maker?
Treat each design as a product and build it identically every time. If you make air handlers, fan coil units or packaged chillers, you need the same panel on every unit, delivered on a fixed date. We take your drawings and bill of materials, fix them as a reference build, and then assemble each batch to that reference with numbered wires, labelled terminals and a test record for every serial number. Drawing changes are controlled so that a revision applies from a stated unit onwards.
Our OEM and contract panel assembly service covers the full process, from NDA and sample build to batch delivery.
How are HVAC panels tested and delivered?
- Enquiry. You send the single-line diagram, load list or OEM drawings.
- Review. We check the specification and heat loads.
- Design. Drawings are issued for approval.
- Build. Panels are assembled in our Dammam workshop.
- Factory acceptance test. We test wiring, insulation, protection and interlocks. See FAT and testing.
- Delivery. Panels go to the plant room, the factory or the site.
- Documentation. You receive as-built drawings and test records.
We have built panels in Saudi Arabia since 2000, and our quality, environmental and safety systems are certified to ISO 9001, ISO 14001 and ISO 45001. Our our Dallah Industrial workshop in Dammam builds more than 150 panels a month. We deliver to Riyadh, Jeddah and the Eastern Province, and respond to Eastern Province enquiries within one working day.
HVAC control panel questions
Who is an HVAC control panel manufacturer in Saudi Arabia?
Saudi Control Panels Company provides chiller, AHU, pump and cooling tower panels from its Dammam workshop, built with ABB, Schneider Electric and Siemens components. We work to your drawings or design the panel from your equipment data.
What affects the cost of an HVAC control panel?
The main factors are the motor and drive ratings, the starting method, the cooling needed for the drives, the enclosure and IP rating, component make and the quantity. Repeat batches cost less per unit than one-off panels. Send your equipment list and the proposal prices each item.
How long does HVAC panel delivery take?
Chiller, AHU and pump panels typically take 2 to 4 weeks, and batch builds 2 to 6 weeks. Drawing approval and the arrival date of any equipment-maker components set the real schedule, so we confirm both when we issue the proposal.
Can you build chiller panels around the chiller maker's controller?
Yes. Send the chiller maker's wiring diagram and controller details. We mount the controller, wire the starter and interlocks as drawn, and test every connection during the factory test before the panel ships.
Can you supply panels for a district cooling plant?
Yes. We build the pump, chiller and cooling tower panels, plant-room MCC and incoming switchboards together, tested as a set, with consistent labelling and documents so one set of drawings covers the whole plant.
What should I send to get a quotation?
Send the single-line diagram, load list or OEM drawings with the bill of materials. For repeat builds, add the expected quantity and delivery dates, and we confirm scope and price within one working day.
Looking for an HVAC control panel manufacturer in Saudi Arabia? Share your equipment list or OEM drawings and we return a priced proposal within one working day.
