Control Panels for Pump Packagers in Saudi Arabia
Saudi Control Panels Company builds control panels for pump packagers in Saudi Arabia, and compressor control panels for skid and package builders: motor starters, VFD panels and local control panels made to your package drawings. Pump and package panels typically take 2 to 4 weeks, and we are approved by Saudi Aramco, SABIC and the Royal Commission.
What you receive: a written proposal with the panel scope, the terminal and cable-entry arrangement, delivery date and price, issued within one working day of your package drawings and motor list. Request a quotation
What does a package builder need from its panel shop?
A packager sells a complete machine, so the panel has to fit the skid, not just the electrical diagram. You need the panel dimensions to match the frame, cable entries to line up with the junction boxes, and the whole assembly to pass your own test bay without rework. A late or wrong panel holds up the final package, whatever else is ready.
Packagers typically ask us for:
- motor starters, built as pump control panels or motor control centres for the main drivers, using DOL, star-delta, soft-starter or VFD starting;

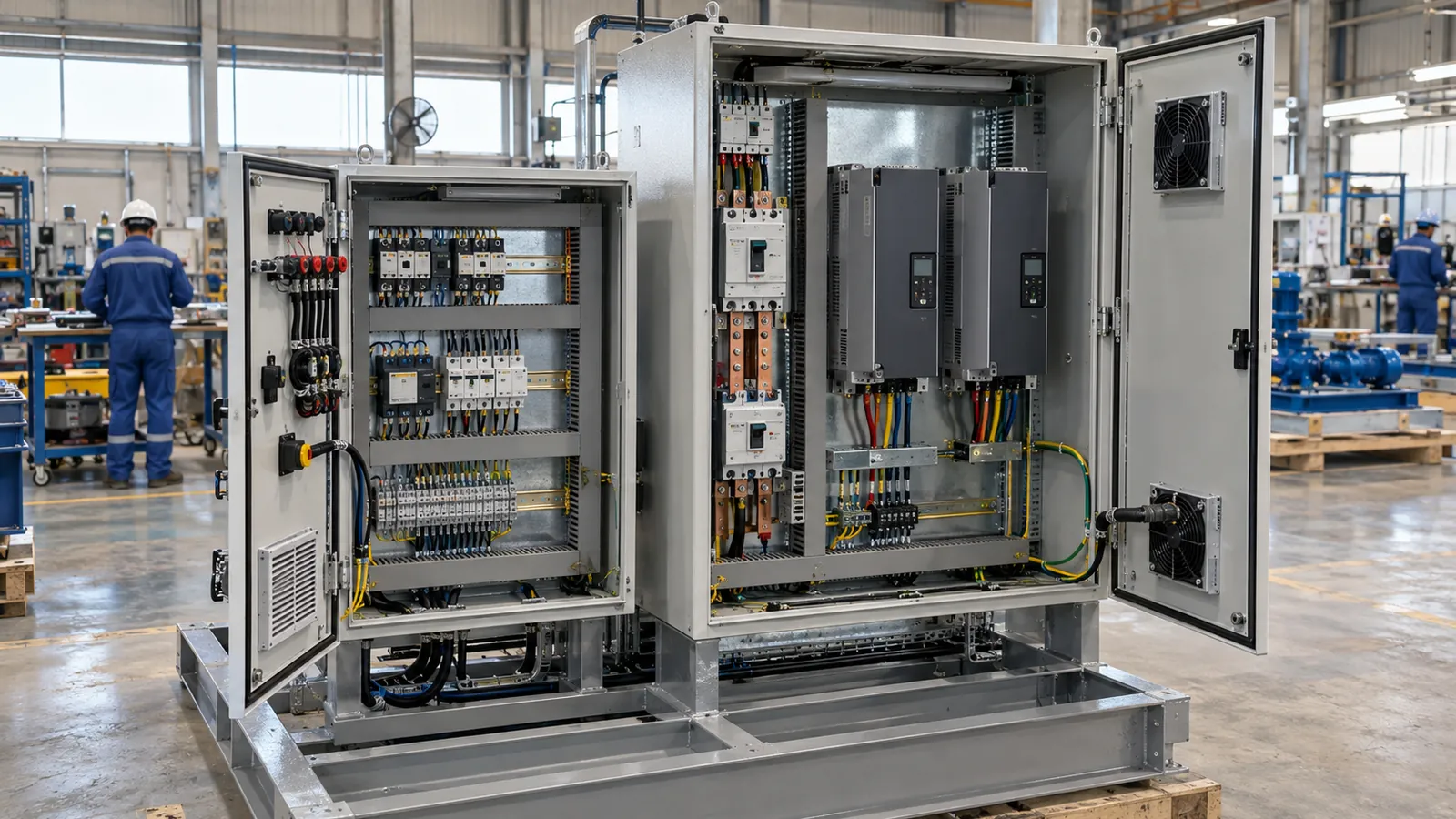

- local control panels mounted on or beside the skid;
- auxiliary panels for lube oil pumps, heaters, cooling fans and instruments;
- marshalling terminals that gather the skid's field wiring into one place; and
- stainless or coated enclosures for outdoor, coastal duty.
Control panels for pump packagers: what we build
| Panel | Range / specification | Standard | Typical lead time |
|---|---|---|---|
| Motor starter and VFD panels | To specification, DOL, star-delta, soft-starter or VFD | IEC 61439-1/-2 | 2–4 weeks |
| Local control panels for skids | Siemens, Rockwell or Schneider PLC hardware integrated per drawings | IEC 60204-1 | 2–4 weeks |
| Motor control centres for larger packages | Fixed or withdrawable, up to 4,000 A busbar | IEC 61439-1/-2 | 4–6 weeks |
| Stainless / outdoor panels | SS304 or SS316, IP55–IP66 | IEC 60529 | 3–5 weeks |
| Build-to-print from your drawings | From customer drawings and BOM | IEC 60204-1 | 2–6 weeks |
| Factory acceptance test | In-house per IEC 61439 routine verification; customer or end-user witness welcome | IEC 61439-1/-2 | Included in build time |
We build with ABB, Schneider Electric and Siemens components in Rittal enclosures, and fit the drive or starter make your end customer's specification names.
How should a skid control panel be laid out?
Arrange it around the skid, not around the drawing office. Mount the panel where the operator can see the equipment and reach the door without climbing over pipework. Take the field cables into one gland plate, sorted by function: power at one side, signals at the other. Size the enclosure for the heat of the drives (see VFD panels), and leave 20 percent spare space for the changes that always arrive during commissioning.
Where a compressor control panel sits near a hot discharge line, move it or add a sun shield and a vent. We review the skid layout before the panel is drawn, and we mark the clearances on the general arrangement drawing so your fabricator can check them.
How do you test a panel that will join a package?
Test the panel hardware on its own, then again with the skid. In our workshop, the factory test covers wiring, insulation, protection and interlocks, with every motor circuit checked against the schedule. Then the panel travels to your yard, where it connects to the skid wiring. Our test record lists each circuit and its result, so your own test bay has a reference. Read about FAT and testing for the contents.
How are package panels built and delivered?
- Enquiry. You send the package drawings, motor list and terminal schedule.
- Review. We check dimensions, heat load and entry positions against the skid.
- Design. Drawings are issued for approval.
- Build. Panels are assembled in our Dammam workshop.
- Factory acceptance test. We test and sign the record.
- Delivery. Panels go to your yard, packed for road transport.
- Documentation. You receive as-built drawings and test records for your data book.
We have worked on projects for Saudi Aramco, SABIC and the Royal Commission, and we are approved by all three. Our our Dallah Industrial workshop in Dammam builds more than 150 panels a month, so a panel for a skid fabricated in the Eastern Province does not wait in a long queue.
Pump and compressor packager questions
Who builds control panels for pump packagers in Saudi Arabia?
Saudi Control Panels Company provides starter, VFD and local control panels for packagers from its our Dallah Industrial workshop in Dammam, built with ABB, Schneider Electric and Siemens components. We build to your package drawings and your end customer's specification.
What affects the cost of a package control panel?
The main factors are motor power and number of drivers, the starting method, the enclosure material and IP rating, component make, the PLC hardware and the data book and witness testing your customer requires. Send your motor list and drawings and the proposal prices each item.
How long does a package panel take to build?
Starter and local control panels typically take 2 to 4 weeks, and motor control centres 4 to 6 weeks. The schedule depends on drawing approval and component delivery, so tell us your package delivery date and we plan backwards from it.
Can you match the terminal layout of our existing skid design?
Yes. Send your terminal schedule and junction box drawings. We number terminals, ferrule cables and position entries as drawn, so the field wiring from your skid lands without any adjustment on site.
Can the end customer's inspector witness the test?
Yes. We invite your end customer's inspector to the factory test, work to the inspection and test plan agreed with you, and issue the signed record with the panel. The panel does not ship until the test is accepted.
What should I send to get a quotation?
Send your package drawings, the motor list with ratings and the terminal schedule. Add the delivery date you must meet. We confirm scope, lead time and price within one working day.
Need control panels for pump packagers in Saudi Arabia? Send your package drawings and motor list, and we return a priced proposal within one working day.
