Control Panels for Water Treatment in Saudi Arabia

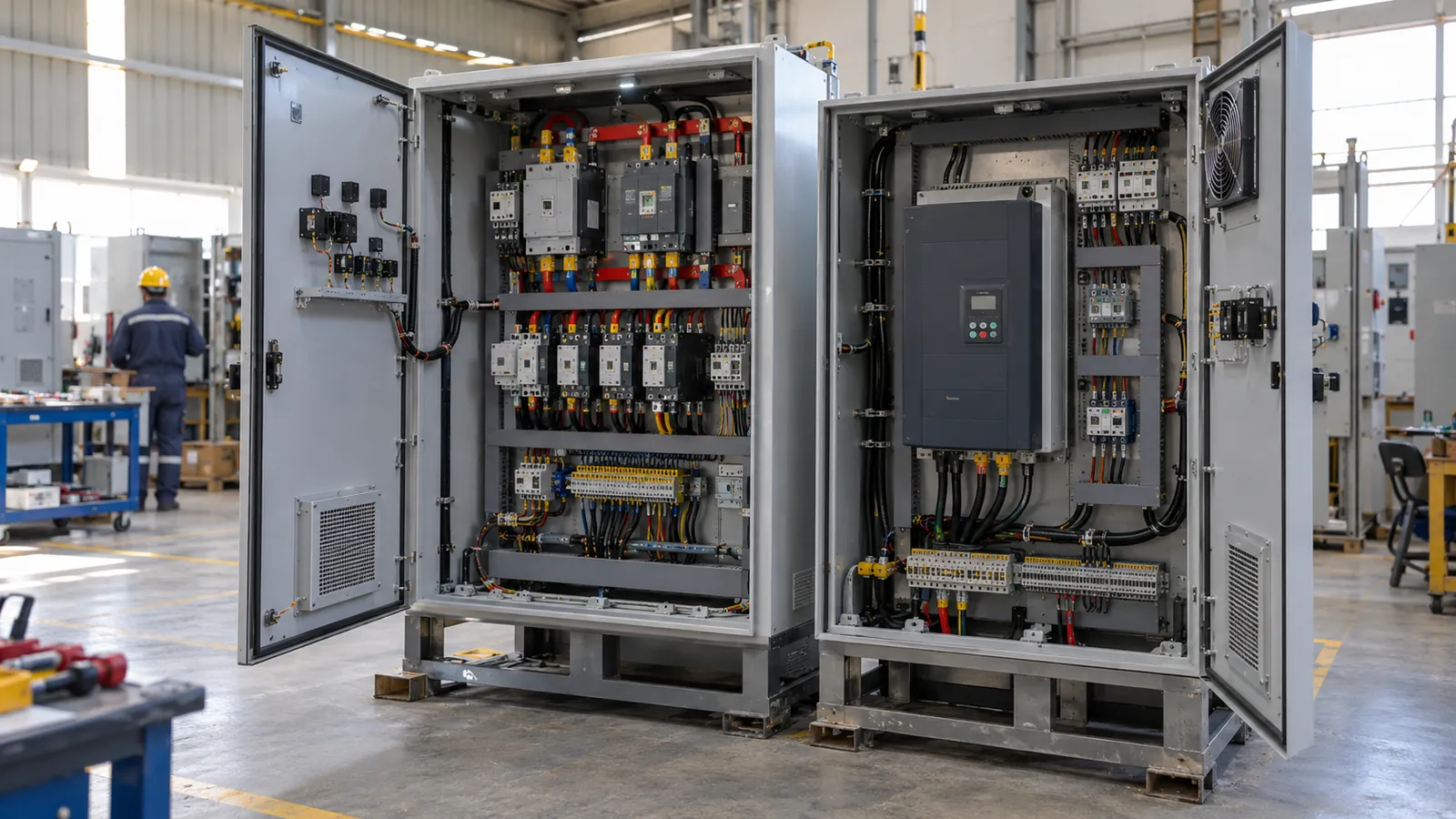

Saudi Control Panels Company builds control panels for water treatment in Saudi Arabia: pump control panels, VFD panels, MCC panels, ATS panels and utility switchboards for treatment plants, pumping stations and distribution networks. Our typical lead time is 2 to 6 weeks, with pump and VFD panels at 2 to 4 weeks, and every panel is tested in our Dammam workshop.
What you receive: a written proposal covering each panel, its rating, the standard it follows, delivery time and price, issued within one working day of your pump schedule and single-line diagram. Request a quotation
What does a water plant need from its panels?
Each panel has to start large pumps without disturbing the supply, keep a standby ready, and stay dry and cool in a pump hall or a chemical-dosing room. Damp air, chlorine vapour and coastal salt attack painted steel, so enclosure choice matters as much as breaker ratings.
A single plant normally needs several panel types:
- a main LV switchboard taking the incoming supply and feeding the plant;
- pump control panels with duty, standby and assist starting for each pump group;
- VFD panels where flow or pressure is controlled by speed;
- MCC panels for blowers, mixers, scrapers and dosing pumps; and
- an ATS panel that moves the plant to a standby generator on mains failure.
Control panels for water treatment: what we build
| Panel | Range / specification | Standard | Typical lead time |
|---|---|---|---|
| Pump control panels | To specification: DOL, star-delta, soft-starter or VFD starting, duty and standby selection | IEC 61439-1/-2; IEC 60204-1 | 2–4 weeks |
| VFD panels | To specification, with ventilation sized to the drive heat load | IEC 61439-1/-2 | 2–4 weeks |
| MCC panels | Fixed or withdrawable, up to 4,000 A busbar, DOL, star-delta, soft-starter and VFD feeders | IEC 61439-1/-2 | 4–6 weeks |
| ATS panels | To specification, generator changeover with interlocking | IEC 61439-1/-2 | 2–4 weeks |
| LV switchboards / MDB / SMDB | Up to 6,300 A, 380–415 V 60 Hz, Form 1–4b, short-circuit rating up to 100 kA (per design verification) | IEC 61439-1/-2 | 3–5 weeks |
| Stainless steel / outdoor panels | SS304 or SS316, IP55–IP66 | IP code to IEC 60529 | 3–5 weeks |
We build with ABB, Schneider Electric and Siemens components in Rittal enclosures. Pump panels carry the control hardware and instrument terminals. See pump control panels for the build detail.
How do you protect panels in a chemical or coastal water plant?
Choose the enclosure by the room it stands in. In a dosing or chlorination room, stainless steel SS316 with a high IP rating resists corrosion where mild steel would not. In a dry pump hall, a painted Rittal or local enclosure is usually enough. Outdoors, a roof or canopy over the panel and an IP55 to IP66 rating keep out dust and washdown water. Our stainless steel and outdoor panels page covers the options.
Internal parts matter too: sealed gland plates and space heaters that keep condensation off the busbars.
How should a pumping station panel handle standby and start-up?
Start with the number of pumps and the duty pattern, because that fixes the starter type. Three equal pumps with one standby, for example, usually suit a duty-standby-assist arrangement with a soft-starter or VFD panel on each, so that inrush stays within the supply limit. Add an ATS panel if a generator backs the station, and interlock it so the generator and the mains can never feed the board together.
The utility or its consultant normally issues the specification, and it often limits the makes you may use. We review it first and list any clause we cannot meet before the build starts.
How are water plant panels built, tested and delivered?
- Enquiry. You send the single-line diagram, pump schedule and panel list.
- Review. We check the specification and return a compliance statement.
- Design. General arrangement and wiring drawings are issued for approval.
- Build. Panels are assembled in our Dammam workshop.
- Factory acceptance test. We verify wiring, insulation, protection and interlocks. See FAT and testing.
- Delivery. Panels are packed and delivered to the plant or the pumping station.
- Documentation. You receive as-built drawings, test records and manuals.
- Support. We stay available for spares and later modifications.
We have worked on projects for Saudi Aramco, SABIC and the Royal Commission for Jubail and Yanbu, and our quality, environmental and safety systems are certified to ISO 9001, ISO 14001 and ISO 45001. Our Dammam workshop build more than 150 panels a month, so a pumping station is not queued. For utilities, we have worked on projects for Saudi Electricity Company in Jeddah.
Water treatment control panel questions
Who provides control panels for water treatment in Saudi Arabia?
Saudi Control Panels Company provides pump, VFD, MCC and ATS panels from its our Dallah Industrial workshop in Dammam, built with ABB, Schneider Electric and Siemens components. Approval is held from Saudi Aramco, SABIC and the Royal Commission for Jubail and Yanbu.
What affects the cost of a water treatment control panel?
The main factors are the number of pumps and their ratings, the starting method, whether drives are fitted, the enclosure material and IP rating, component make and the testing the specification requires. Send your pump schedule and single-line diagram and the proposal prices each item.
How long does pump panel delivery take?
Pump and VFD panels typically take 2 to 4 weeks, MCC panels 4 to 6 weeks and switchboards 3 to 5 weeks. The schedule depends mainly on drawing approval, so a quick review on your side shortens it more than anything else we can do.
Can you build panels for a standby generator changeover?
Yes. We supply ATS panels with mechanical and electrical interlocking, a transfer controller and the metering your specification requires, and we test the changeover sequence during the factory test before the panel leaves Dammam.
Can you match a pump manufacturer's starter requirements?
Yes. Send the pump data sheet and the starter or drive details from the manufacturer, and we size the starter, protection and cable terminals to suit. Where the supplier specifies a particular drive, we build the panel around it.
What should I send to get a quotation?
Send the single-line diagram, pump list with motor ratings and any utility specification extracts. The starting method for each pump helps. We confirm scope, standards, lead time and price within one working day.
Looking for control panels for water treatment in Saudi Arabia? Send your pump schedule and single-line diagram, and a quotation reaches you within one working day.
